●Dual axis inclination measurement
●Range：±90°
●Highest accuracy：0.01°
●Wide voltage input：9～36V
●Output mode：RS485/TTL optional，Modbus
●Can be cascaded for multiple sections
●Wide temperature work: -40℃～+85℃
●High vibration resistance >2000g
●Resolution：0.01°

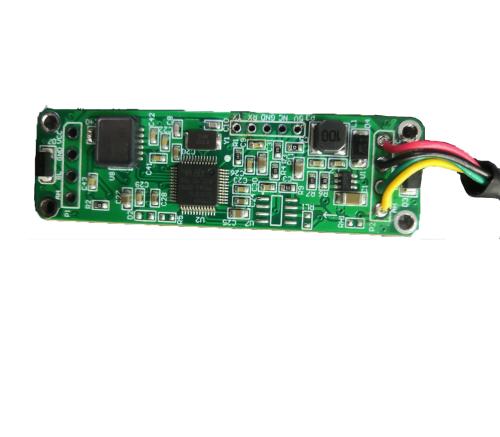

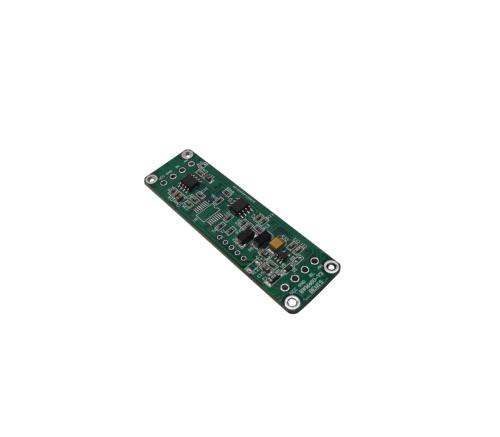

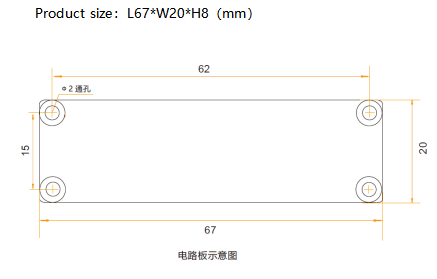

●Bare board Size：67×20×8mm
Shared：

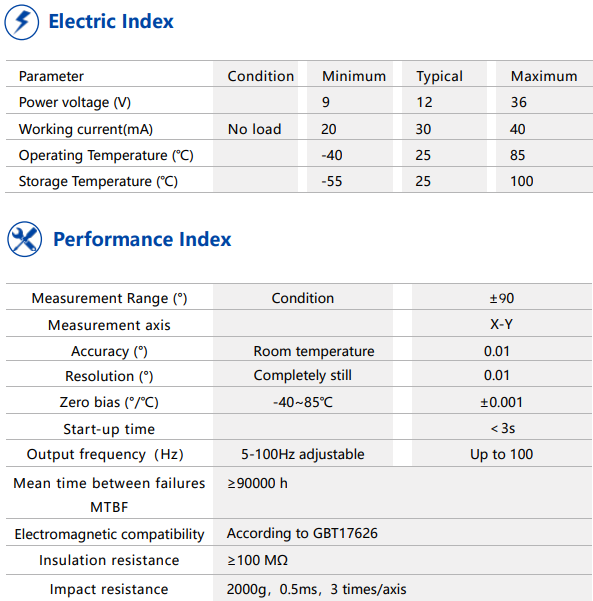

Measurement Range (°) | Condition | ±90 | |
Measurement axis | X-Y | ||
Accuracy (°) | Room temperature | 0.01 | |
Resolution (°) | Completely still | 0.01 | |
Zero bias (°/℃) | -40~85℃ | ±0.001 | |
Start-up time | ＜3s | ||
Output frequency（Hz） | 5-100Hz adjustable | Up to 100 | |
Mean time between failures MTBF | ≥90000 h | ||
Electromagnetic compatibility | According to GBT17626 | ||
Insulation resistance | ≥100 MΩ | ||
Impact resistance | 2000g，0.5ms，3 times/axis | ||
-
