● Dual axis inclination measurement
● Resolution：0.001°
● Power supply：9-36V

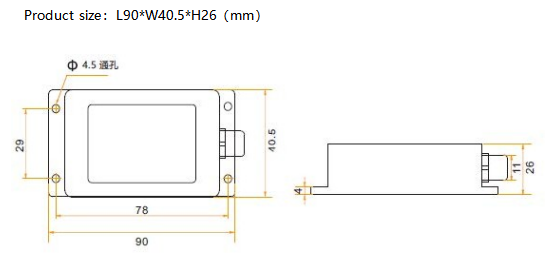

● Dimension：L90*W40.5*H26（mm）
● Highest accuracy：0.01°
● Range：±30°
● Output mode：RS485/TTL optional
● IP67 Protection level
Shared：

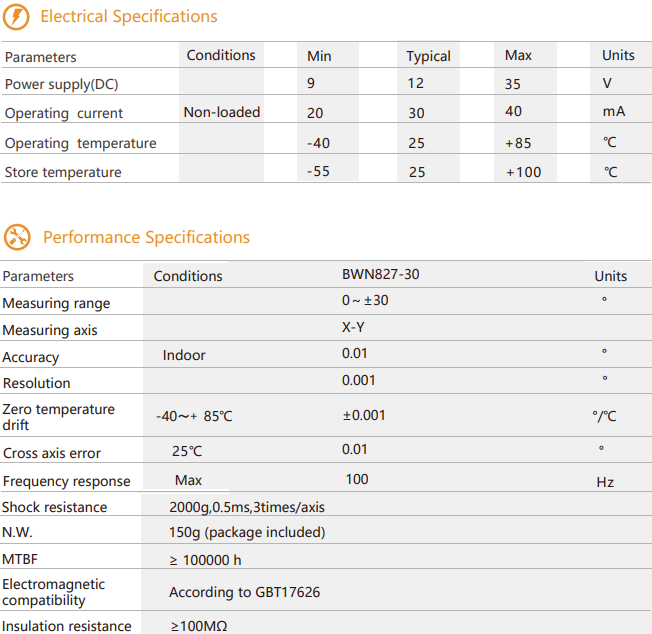

Measurement Range (°) | Condition | ±30 |
Measurement axis | X-Y | |
Accuracy (°) | Highest | 0.01 |
Resolution (°) | Completely still | 0.001 |
Zero bias (°/℃) | -40~85℃ | ±0.001 |
Cross axis error | 25℃ | 0.01 |
Output frequency (Hz) | 5-100Hz adjustable | Up to 100 |
Mean time between failures MTBF | ≥90000 h | |
Electromagnetic compatibility | According to GBT17626 | |
Insulation resistance | ≥100 MΩ | |
Impact resistance | 2000g，0.5ms，3 times/axis | |
-
