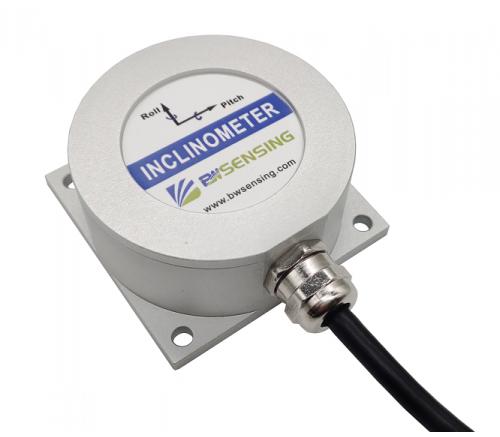

BWSENSING CAN Bus Dynamic Inclinometer BW-VG125C
BWSENSING CAN Bus Dynamic Inclinometer BW-VG125C
VG125C BWSENSING CAN Bus Dynamic Inclinometer BW-VG125C Product Introduction:

● Dynamic accuracy: 1°
● Static accuracy: 0.01°
● Non-linear compensation, quadrature compensation
● Special offset tracking
● CAN interface output
● Wide temperature range:-40℃~+85℃
● High-performance Kalman filter algorithm
● Dimension:L60x

Shared:

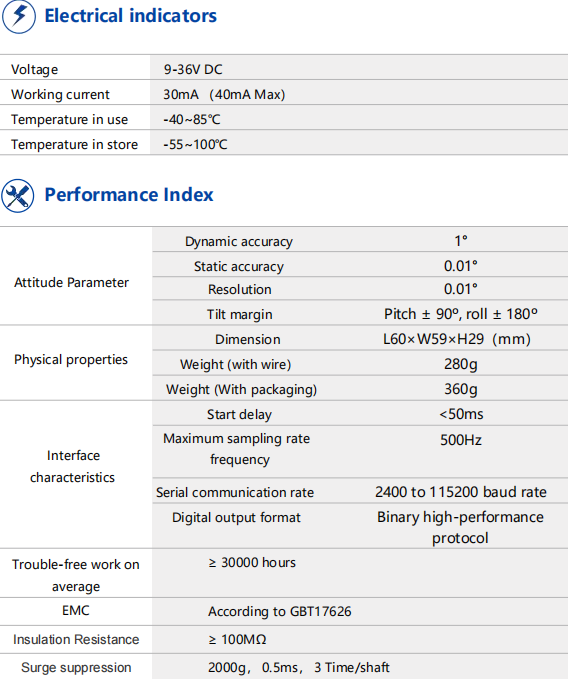

Technical Specifications



Attitude Parameter

Dynamic accuracy


Static accuracy

0.01°


Resolution

0.01°


Tilt margin

Pitch ± 90º, roll ± 180º



Physical properties

Dimension

L60×W59×H29(mm)


Weight (with wire)

280g


Weight (With packaging)

360g





Interface characteristics

Start delay

<50ms


Maximum sampling rate frequency

500Hz


Serial communication rate

2400 to 115200 baud rate


Digital output format

Binary high-performance protocol

Trouble-free work on

average

≥ 30000 hours

EMC

According to GBT17626

Insulation Resistance

≥ 100MΩ

Surge suppression

2000g, 0.5ms, 3 Time/shaft

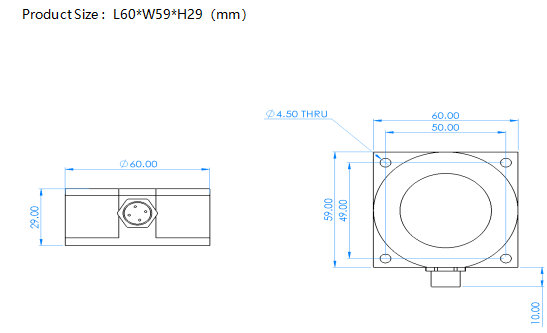

Product Size
