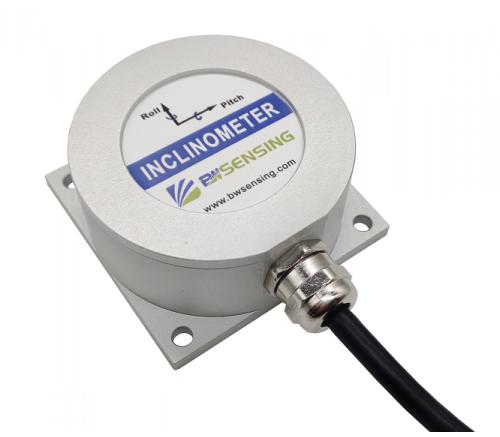

BWSENSING Ultra-High Precision Digital Dynamic Inclinometer BW-VG500C
BWSENSING Ultra-High Precision Digital Dynamic Inclinometer BW-VG500C
VG500C BWSENSING Ultra-High Precision Digital Dynamic Inclinometer BW-VG500C Product Introduction:

● Dynamic accuracy: 0.1°
● Static accuracy: 0.01°
● Non-linear compensation, quadrature compensation
● Special offset tracking algorithm to eliminate drift
● RS232/485/TTL interface output optional
● Wide temperature range:-40℃~+85℃
● High-perfo

Shared:

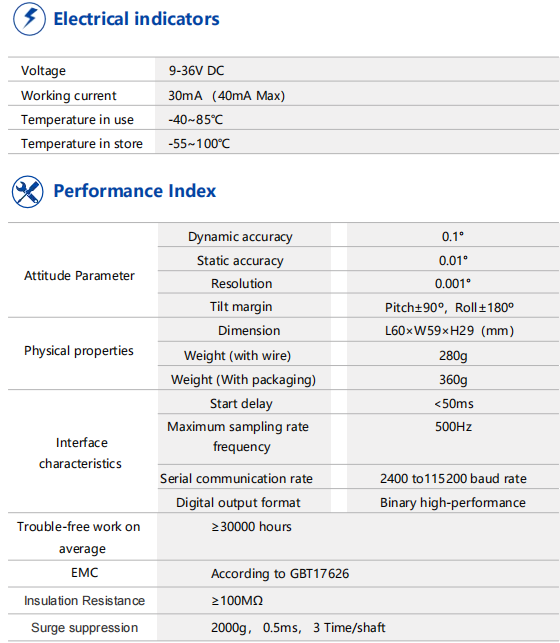

Technical Specifications



Attitude Parameter

Dynamic accuracy


0.1°


Static accuracy


0.01°


Resolution


0.001°


Tilt margin


Pitch±90º,Roll±180º



Physical properties

Dimension


L60×W59×H29(mm)


Weight (with wire)


280g


Weight (With packaging)


360g





Interface characteristics

Start delay


<50ms


Maximum sampling rate frequency


500Hz


Serial communication rate


2400 to115200 baud rate


Digital output format


Binary high-performance

Trouble-free work on average

≥30000 hours

EMC

According to GBT17626

Insulation Resistance

≥100MΩ

Surge suppression

2000g, 0.5ms, 3 Time/shaft

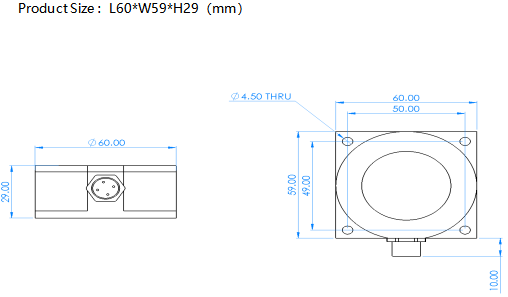

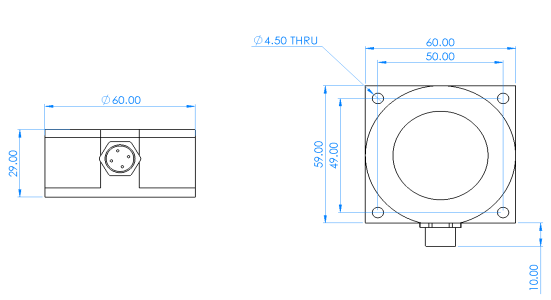

Product Size
