● Dynamic accuracy（Low dynamic scene）：1°(RMS)
● Interface：CAN/RS232
● Triple redundancy sensor fault detection
● Static accuracy：0.1°(RMS)

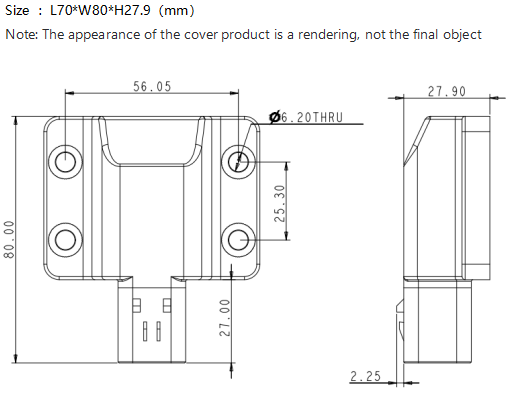

● Size：L70*W80*H27.9（mm）
● Triple redundancy fusion IMU algorithm
● working temperature：-40℃~+80℃
Shared：
Gyroscope | Accelerometer | ||
Range | ±500°/s | ±8g，±4g | |
Resolution | 0.018°/s | 0.25mg, 0.13mg, | |
Total temperature zero deviation(-20℃~＋60℃) | X、Y、Z：0.1°/s | X、Y、Z：5mg Z：40mg | |
Zero bias instability | 5°/h（Allan） | 0.05mg（Allan） |
Pitch/roll | Dynamic accuracy (low dynamic scenarios) | 1°（RMS） | |
static accuracy | 0.1°（RMS） | ||
Resolution | 0.01° | ||
Tilt angle | pitch±80º，roll±180º | ||
physical property | Size | L70*W80*H27.9（mm） | |
characteristics of interfaces | Maximum output frequency | 200Hz | |
CAN | 25kbps-1mbps | ||
EMC | Follow GBT17626 | ||
insulation resistance | ≥100MΩ | ||
shock resistance | 2000g，0.5ms，3times/axis | ||
● Ships

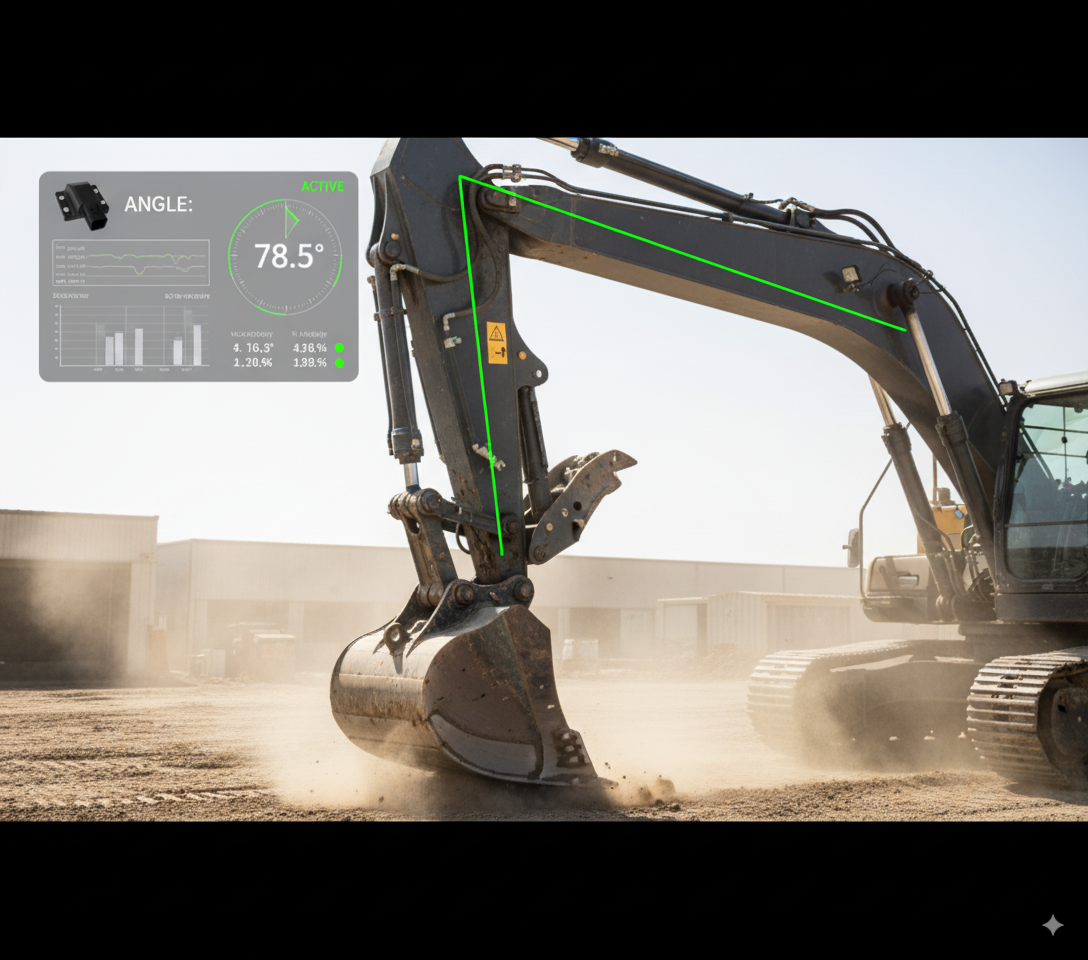

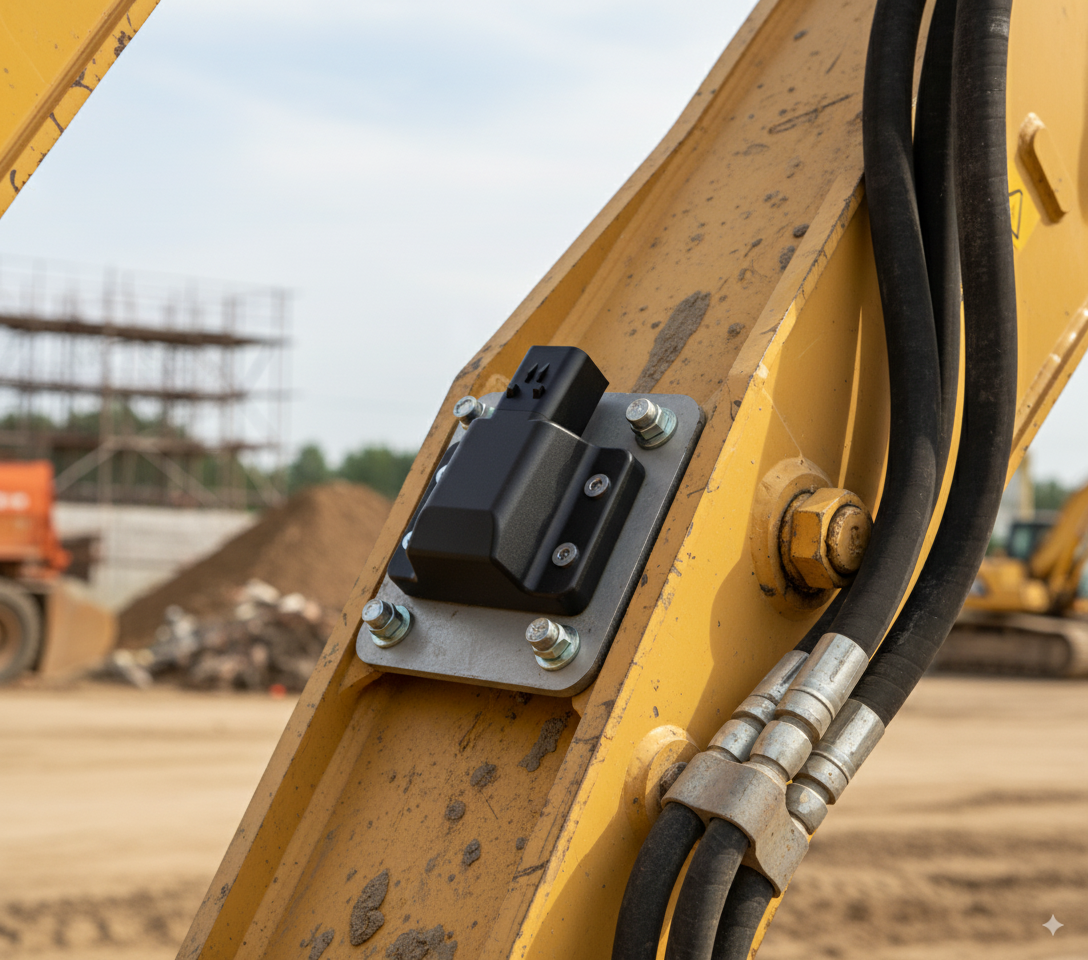

● Construction machinery
● Platform stability
● Agricultural Machinery
● ROV underwater vehicle navigation
● Driver less
● Robot
● Unmanned Aerial Vehicle
-
