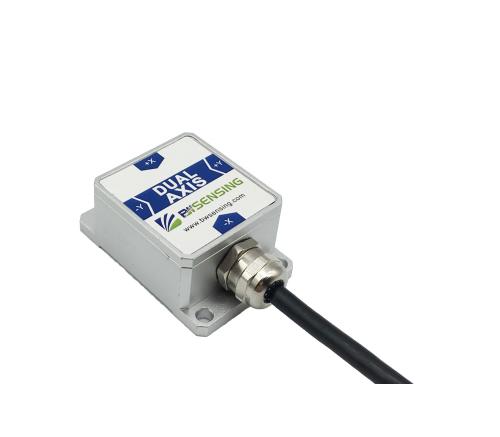

BWSENSING Dual-axis Inclinometer BWL325S
BWSENSING Dual-axis Inclinometer BWL325S
BWL325S BWSENSING Dual-axis Inclinometer BWL325S Product Introduction:

● Dual axis tilt measurement
● Resolution: 0.01°
● Power supply: 9-36V
● Volume: L55*W37*H24( mm)
● Highest accuracy:0.1°
● Range:±90°
● Output :CAN
● IP67 protection level

Shared:

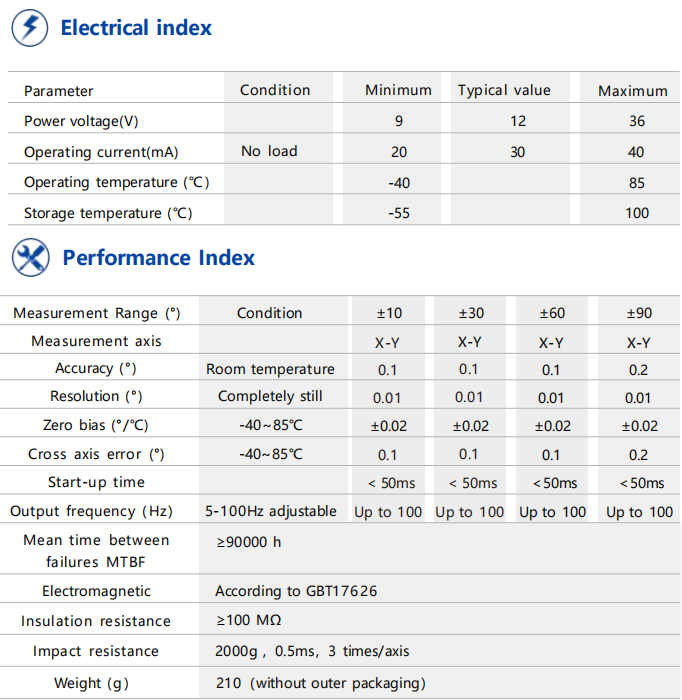

Technical Specifications

Measurement Range (°)

Condition

±30

Measurement axis


X-Y

Accuracy (°)

Room temperature

0.1

Resolution (°)

Completely still

0.01

Zero bias (°/℃)

-40 ~85℃

±0.02

Cross axis error (°)

-40~85℃

0.1

Start-up time


 50ms

Output frequency ( Hz)

5-100Hz adjustable

Up to 100

Mean time between failures MTBF

≥90000 h




Electromagnetic

According to GBT17626




Insulation resistance

≥100




Impact resistance

2000g 0.5ms3 times/axis




Weight (g)

210(without outer packaging





Product Size
