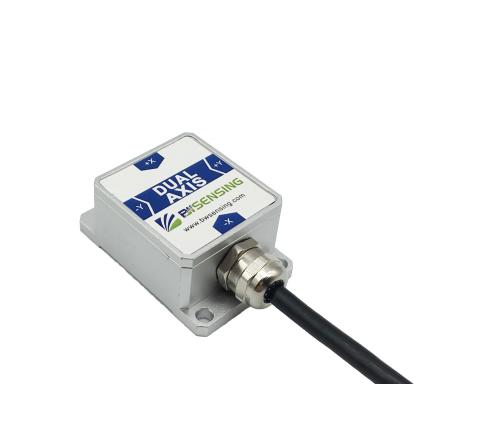

● Dual-axis inclinometer measurement
● Resolution: 0.01°
● Voltage input: 9~35V

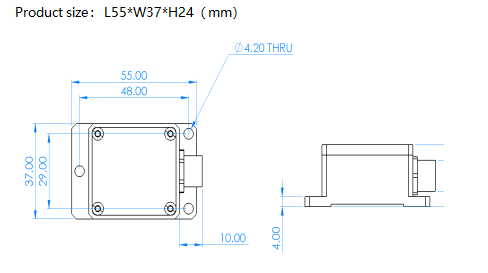

● Product size: L55mm×W37mm×H24mm(customizable)
● Accuracy: 0.1°
● Measuring range: ±90°
● IP67 protection
● Output interface: RS232/485/TTL optional
Shared：

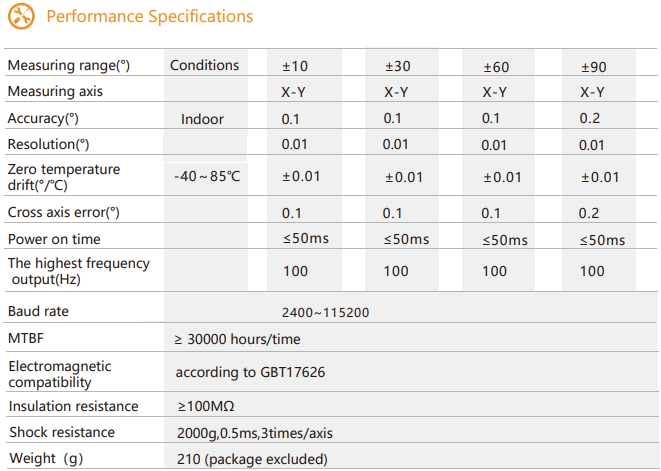

Measurement Range (°) | Condition |
| ±30 |
|
|
Measurement axis | Mutually perpendicular |
| X-Y |
|
|
Accuracy (°) | Room temperature |
| 0.1 |
|
|
Resolution (°) | Completely still |
| 0.01 |
|
|
Cross axis error (°) | -40~85℃ |
| 0.1 |
|
|
Start-up time |
| ＜50ms |
|
| |
Output frequency (Hz） | 5-100Hz adjustable |
| Up to 100 |
|
|
Mean time between failures MTBF | ≥90000 h | ||||
Electromagnetic | According to GBT17626 | ||||
Insulation resistance | ≥100 MΩ | ||||
Impact resistance | 2000g ，0.5ms ， 3 times/axis | ||||
Weight (g） | 210（without outer packaging） | ||||
-
