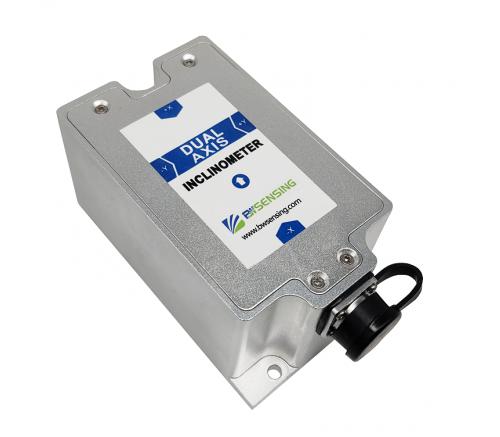

BWSENSING High Accuracy Digital Dual-axis Inclinometer BWS5000E Enhanced version of EMC protection
BWSENSING High Accuracy Digital Dual-axis Inclinometer BWS5000E Enhanced version of EMC protection
BWS5000E BWSENSING High Accuracy Digital Dual-axis Inclinometer BWS5000E Enhanced version of EMC protection Product Introduction:

● Dual axis tilt measurement
● High accuracy:0.001°
● Cross axis error: 0.001°
● Baud rate 2400~115200 adjustable
● Temperature drift 0.0003°/℃
● Wide voltage input 9-36V DC
● High-level EMC protection
● RS485/232/TTL optional

Shared:

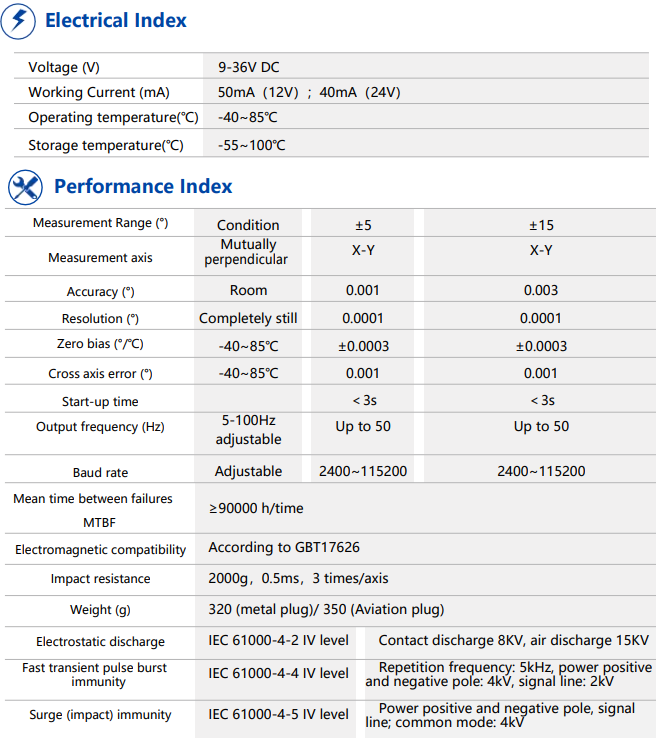

Technical Specifications

Measurement Range (°)

Condition


±5


±15


±30



Measurement axis

Mutually perpendicular


X-Y


X-Y


X-Y

Accuracy (°)

Room temperature


0.001


0.003


0.005

Cross-axis error (°)

-40〜85℃


0.001


0.003


0.005

Resolution (°)

be completely still


0.0005

Zero point temperature drift (°/°C)

-40〜85℃


±0.0007

Power-on start-up time



3s

Output frequency (Hz)

5-100Hz adjustable


Up to 100

Baud rate

Adjustable


2400~115200

Mean time between failures MTBF

≥90000 h

Electromagnetic compatibility

According to GBT17626

Impact resistance

2000g,0.5ms,3 times/axis

Weight (g)

 320 (metal plug) / 350 (airline plug)

Electrostatic Discharge (ESD)

IEC 61000-4-2 Class IV


Contact discharge 8KV, air discharge 15KV

Fast transient burst immunity

IEC 61000-4-4 Class IV


Repetition frequency 5kHz, positive and negative power supply 4KV, signal line 2KV

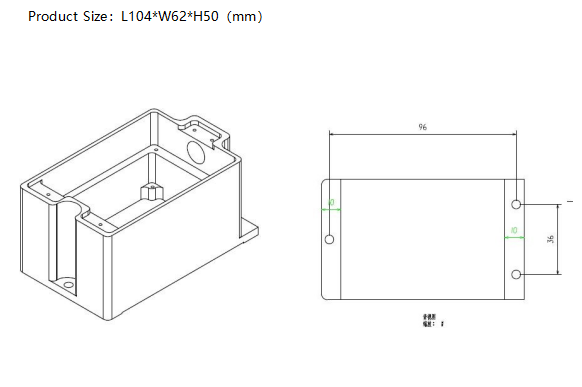

Product Size
